Operating motor vehicles across the industrial and maritime corridors of North Charleston, South Carolina—spanning the congested intersections of Rivers Avenue, Dorchester Road, and Interstate 26—subjects internal combustion engines to severe mechanical and thermodynamic stress. Sustained ambient summer heat exceeding 95°F, dense relative humidity, stop-and-go commuter cycles, and heavy commercial payload hauling place extreme demands on powertrain assemblies. Inadequate oil cooling, broken timing belts, cooling system ruptures, and hydro-locking from standing tidal storm puddles can quickly turn minor mechanical defects into catastrophic internal powertrain failure.
Selecting The Mobile Auto Shop's engine repair and replacement in North Charleston provides commercial fleets, independent contractors, and passenger vehicle owners with an integrated powertrain service platform. Rather than writing off vehicles suffering from internal engine knocking, low compression, or blown head gaskets, certified master technicians deploy structured diagnostic procedures to pinpoint exact failure modes. From high-resolution borescope cylinder inspections and precision cylinder head resurfacing to complete turnkey long-block replacements, this technical guide examines the diagnostic protocols, precision machining tolerances, engine swap procedures, and coastal protection standards delivered by The Mobile Auto Shop's engine repair and replacement in North Charleston.
Internal Engine Forensic Diagnostics: Pressure, Vacuum, and Optical Analysis
Before recommending extensive mechanical teardowns or complete engine replacements, technicians perform systematic diagnostic testing to isolate the root cause of engine failure.
+-----------------------------------------------------------------------------------------+
| POWERTRAIN DIAGNOSTIC MATRIX |
+--------------------------+-----------------------+------------------+-------------------+
| Diagnostic Procedure | Tool / Instrumentation| Target Benchmark | Failure Indication|
+--------------------------+-----------------------+------------------+-------------------+
| Static Cranking Compress.| Thread-In Gauge | 150 to 200+ PSI | Variances > 10-15%|
| Cylinder Leak-Down Rate | Dual-Gauge Regulator | < 5% to 10% Leak | Whistling Dipstick|
| Optical Bore Inspection | 1080p Articulating Cam| Smooth Crosshatch| Vertical Gouges |
| Block Chemical Analysis | Combustion Gas Fluid | Blue (No Hydroc.)| Yellow/Green Shift|
| Dynamic Oil Pressure | Mechanical Dial Port | 25 to 65+ PSI Hot| < 10 PSI at Idle |
+--------------------------+-----------------------+------------------+-------------------+
Compression and Cylinder Leak-Down Testing
Measuring internal combustion sealing efficiency determines whether an engine can be repaired or requires replacement:
-
Static Cranking Compression: Technicians remove all spark plugs, disable the fuel injection system, and thread a mechanical pressure gauge into each spark plug port. Cranking the engine records peak pressure per cylinder. A healthy engine displays uniform compression across all cylinders; a drop greater than 10% to 15% in one or more cylinders indicates valve seating failure, broken piston rings, or head gasket failure.
-
Cylinder Leak-Down Testing: The technician rotates the crankshaft to place the target cylinder at Top Dead Center (TDC) on its compression stroke, locking the intake and exhaust valves closed. Pressurized shop air (typically 100 psi) is fed through a dual-gauge regulator into the cylinder:
-
Air escaping from the oil filler cap or dipstick tube indicates blow-by past worn or broken piston rings.
-
Air hissing from the tailpipe indicates an unseated or burned exhaust valve.
-
Air bubbling out of the throttle body indicates a leaking intake valve.
-
Air bubbles rising in the radiator expansion tank indicate a cracked cylinder head or a breached head gasket.
-
[ Mechanical Misfire / Low Power / Overheating Event ]
|
v
[ Thread-In Static Compression Test Across All Bores ]
|
+------------------------+------------------------+
| |
[ Uniform PSI (Within 10%) ] [ Low PSI in Adjacent Bores ]
| |
(Check Fuel / Ignition Delivery) (Breached Head Gasket or Rings)
| |
| v
| [ Dual-Gauge Cylinder Leak-Down Test ]
| |
+------------------------+------------------------+
|
v
[ Air Escaping: Dipstick, Exhaust, Intake, or Coolant ]
|
v
[ High-Definition Articulated Borescope Internal Inspection ]
Articulated Borescope Optical Cylinder Inspections
Modern engine diagnostics rely on high-definition micro-inspection cameras:
-
Inspecting Cylinder Walls: Articulating digital borescopes pass through the spark plug or injector hole directly into the combustion chamber. Technicians inspect the cylinder wall's original crosshatch honing pattern, checking for scuffing, vertical cylinder wall scoring, or carbon buildup.
-
Piston Crown and Valve Face Audits: High-definition video reveals cracked piston crowns, evidence of valve-to-piston contact caused by broken timing chains, melted aluminum edges from severe detonation (spark knock), or coolant puddles sitting on top of the piston.
Cylinder Head Overhauls: Precision Machining, Warpage Tolerances, and Valve Seating
Severe cooling system failures along North Charleston highways frequently overheat cast-aluminum cylinder heads, warping metal surfaces and blowing head gaskets.
+-------------------------------------------------------------------------+
| CYLINDER HEAD REMANUFACTURING SEQUENCE |
+-------------------------------------------------------------------------+
| [ Step 1: Teardown & Clean ] -> Strip valves, wash in ultrasonic tank|
| [ Step 2: Magnaflux / Pressure ] -> Check for microscopic casing cracks |
| [ Step 3: Deck Surface Milling ] -> Resurface deck to Ra 20-30 finish |
| [ Step 4: Valve Seat 3-Angle ] -> CNC cut 30°, 45°, and 60° seat angles|
| [ Step 5: Stem Seals & Assembly] -> Install Viton seals and check springs|
| [ Step 6: Torque-to-Yield Bolt ] -> Multi-stage angle torquing with MLS |
+-------------------------------------------------------------------------+
Deck Warpage Limits and Precision Surface Milling
When an aluminum cylinder head overheats, thermal expansion causes the metal to bow and twist:
-
Precision Straightedge and Feeler Gauges: Technicians clean the cylinder head mating surface and lay a precision ground machinist straightedge across the deck in six directions (longitudinal, transverse, and both diagonals).
-
Warpage Benchmarks: Maximum allowable deck warpage on modern overhead-cam (OHC) aluminum cylinder heads is extremely tight—typically less than 0.002 inches (0.05 mm) along the entire span. Any gap allowing a 0.003-inch feeler gauge beneath the straightedge requires surface milling.
-
Surface Finish (Ra) for MLS Gaskets: Modern engines use Multi-Layer Steel (MLS) head gaskets, which require a smooth deck surface finish. Machinists surface the head using specialized PCD (polycrystalline diamond) or CBN (cubic boron nitride) milling cutters to achieve a surface roughness rating of 20 to 30 Ra. A rough surface will not seal an MLS gasket, resulting in external coolant leaks or oil seepage.
[ Multi-Angle Valve Seat Geometry ]
+-------------------------------------------------------+
| Top Angle: 30° (Flow Blend) |
+-------------------------------------------------------+
| Seat Angle: 45° (Primary Seal) |
+-------------------------------------------------------+
| Throat Angle: 60° (Chamber Entry) |
+-------------------------------------------------------+
Multi-Angle Valve Jobs and Vacuum Seating Verification
-
Three-Angle Cutting: Machining intake and exhaust valve seats using a 3-angle profile (30-degree top relief, 45-degree sealing face, 60-degree bottom throat) optimizes air-fuel mixture flow into the combustion chamber while ensuring a tight gas seal.
-

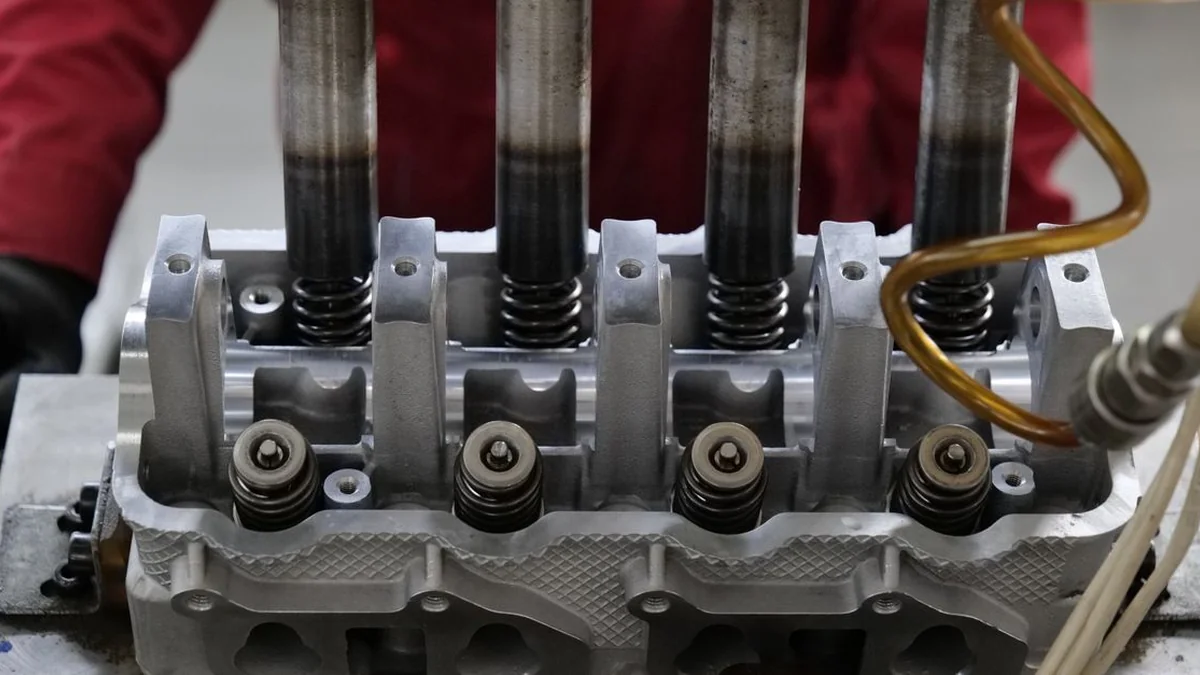

Vacuum Integrity Testing: Fully assembled cylinder heads are verified using a pneumatic vacuum tester placed directly over the intake and exhaust ports. A freshly cut valve must pull and hold a minimum of 22 to 24 inHg of vacuum, confirming an airtight seal before the head is bolted back to the engine block.
Short Block vs. Long Block vs. Remanufactured Engine Swaps
When diagnostic inspections reveal major bottom-end failure—such as spun rod bearings, broken connecting rods, or cracked engine blocks—a complete engine replacement is the most cost-effective solution.
+-----------------------------------------------------------------------------------------+
| ENGINE REPLACEMENT ARCHITECTURE |
+--------------------------+-----------------------+------------------+-------------------+
| Configuration Typology | Included Components | Excluded Items | Best Application |
+--------------------------+-----------------------+------------------+-------------------+
| Short Block Assembly | Block, Crank, Rods, | Heads, Valvetrain| Good Heads, Bad |
| | Pistons, Bearings | Oil Pan, Covers | Bottom End Wear |
| Long Block Assembly | Complete Block, Heads,| Manifolds, Fuel, | Industry Standard |
| | Camshafts, Valvetrain | Sensors, Harness | Clean Powertrain |
| Complete (Crate / Turnkey| Fully Dressed Long | Plug-and-Play | Fleet Vehicles, |
| Engine Package) | Block + Accessories | Minimal Labor | Immediate Return |
+--------------------------+-----------------------+------------------+-------------------+
The Long-Block Installation Standard
In modern automotive service, the remanufactured long-block represents the standard for engine replacements:
-
Included Components: A long-block includes the fully remanufactured engine block, polished crankshaft, balanced connecting rods, new pistons and rings, new bearings, remanufactured cylinder heads, camshafts, and a new timing chain or belt assembly.
-
Transferred Accessories: Technicians clean and transfer external accessories from the original engine, including the intake and exhaust manifolds, fuel injection rails, alternator, starter motor, power steering pump, A/C compressor, and engine wiring harness.
The videos below explain the structural differences between short block and long block engines, helping vehicle owners choose the right replacement path:
Step-by-Step Long-Block Replacement Workflow
Executing a professional engine replacement requires proper rigging equipment, adherence to manufacturer specifications, and methodical installation steps.
+-------------------------------------------------------------------------+
| LONG-BLOCK ENGINE REPLACEMENT WORKFLOW |
+-------------------------------------------------------------------------+
| [ Phase 1: Evacuation & Fluid Drain ] -> Reclaim A/C, drop oil/coolant |
| [ Phase 2: Disconnection & Rigging ] -> Label harness, unbolt flexplate|
| [ Phase 3: Crane Extraction ] -> Extract engine from engine bay |
| [ Phase 4: Component Transfer ] -> Clean/swap manifolds, sensors |
| [ Phase 5: Drop-In & Alignment ] -> Mate to transmission input |
| [ Phase 6: Pressure Pre-Lube ] -> Prime oil pump, fill fluids |
| [ Phase 7: Break-In & Road Testing ] -> Cam break-in, thermal cycling |
+-------------------------------------------------------------------------+
Phase 1 to 3: Extraction and Teardown
-
Fluid Containment: Technicians reclaim A/C refrigerant using an EPA-certified station, drain engine coolant, and recover motor oil into sealed containment drums.
-
Harness Labeling: Every electrical connector, vacuum hose, and fuel line is tagged and cataloged. Technicians separate the exhaust downpipes, unbolt the torque converter from the flexplate, and disconnect the bellhousing bolts.
-
Engine Extraction: Using an overhead engine hoist or lifting crane, the engine is carefully lifted clear of the engine bay without damaging surrounding radiator supports, steering shafts, or A/C lines.
Phase 4 to 6: Transfer, Pre-Lubrication, and First Start
-
Ultrasonic Manifold Cleaning: Intake manifolds are cleaned to eliminate oil residue from previous engine failures. Defective PCV valves, oil pressure sensors, and water pumps are replaced with new units during transfer.
-
Engine Pre-Oiling (Pressure Priming): Cranking a brand-new, dry engine can scuff new bearings and camshaft lobes. Technicians connect a pressurized oil priming tank to an engine oil gallery port, pumping fresh synthetic motor oil throughout the engine until pressure registers on the dashboard gauge, lubricating all bearings and lifters before the first start.
-
Vacuum Cooling Refill: An air-powered vacuum coolant filler eliminates air pockets in the cooling passages, preventing engine hot spots during initial startup.
Coastal Environmental Stress: Engine Defense in North Charleston
The coastal Lowcountry environment presents unique chemical and thermal challenges that accelerate component wear and internal corrosion.
+-------------------------------------------------------------------------+
| COASTAL ENGINE PRESERVATION MATRIX |
+--------------------------+-----------------------+------------------+-------------------+
| Environmental Variable | Mechanical Impact | Component At Risk| Preventive Action |
+--------------------------+-----------------------+------------------+-------------------+
| High Humidity Dew Points | Crankcase Emulsion | Oil Quality / TBN| Frequent Cycles |
| Standing Saltwater Puddle| Hydraulic Hydro-Lock | Rods / Air Intake| Check Cold Intakes|
| Airborne Marine Salinity | Aluminum Block Pitting| Ground Cables / | Dielectric Grease |
| Summer Heat (> 95°F) | Oil Viscosity Thinning| Journal Bearings | Proper Synthetic |
+--------------------------+-----------------------+------------------+-------------------+
Preventing Crankcase Moisture Emulsion
Short trips around North Charleston in humid air can prevent engines from reaching full operating temperature:
-
The Moisture Problem: Moisture vapor in the crankcase condenses into liquid water instead of evaporating through the PCV system, forming a milky yellow-white sludge under the oil cap and diluting motor oil.
-
Maintenance Solution: Vehicles driven on short trips require regular highway driving cycles and 5,000-mile full synthetic oil changes to preserve oil film strength and prevent sludge buildup.
Roadway Flooding and Engine Hydro-Lock
Lowcountry coastal storms frequently create localized roadway flooding:
-
The Mechanism of Hydro-Lock: If an engine ingests water through the air intake, water fills the cylinders. Because liquids are incompressible, the rising piston stops abruptly on the compression stroke. The crankshaft's momentum bends or snaps connecting rods, cracks pistons, and can throw a rod straight through the side of the engine block.
-
Field Diagnosis: When recovering a vehicle that stalled in standing water, technicians never attempt to crank the engine. Technicians pull all spark plugs first and turn the engine by hand to clear any water safely.
Frequently Asked Questions (FAQ)
What are the earliest symptoms that an engine needs repair or replacement?
Common warning signs include persistent metallic knocking or tapping noises that increase with engine RPM (indicating loose rod bearings or piston slap), heavy blue exhaust smoke (burning oil past worn rings or valve guides), thick white exhaust smoke paired with coolant loss (blown head gasket), significant power loss paired with a flashing Check Engine light, or an oil pressure warning light flickering at hot idle.
What is the difference between a short block and a long block engine?
A short block includes the basic lower engine assembly: the cylinder block, crankshaft, connecting rods, pistons, and bearings. A long block includes the short block plus remanufactured cylinder heads, camshafts, valvetrain components, and a freshly timed timing chain or belt assembly. A long block is the preferred choice for major engine replacements because it provides a fully remanufactured, matched powertrain assembly.
Can a blown head gasket be repaired without replacing the entire engine?
Yes, provided the engine was shut off before severe overheating occurred and the cylinder block is not warped or cracked. Repairing a blown head gasket requires removing the cylinder head, testing it for cracks, precision-milling the deck to factory smoothness (Ra 20–30), and reinstalling it with a new Multi-Layer Steel (MLS) gasket and new torque-to-yield (TTY) cylinder head bolts.
What causes an engine to hydro-lock during Charleston coastal rainstorms?
Hydro-lock happens when water enters the engine air intake while driving through standing water. Because water is incompressible, the rising piston stops instantly on its upward stroke. The mechanical force bends or breaks connecting rods, shatters pistons, and can punch holes through the engine block, requiring a complete engine replacement.
How long does a typical long-block engine replacement take?
A complete engine replacement typically requires 15 to 25 labor hours, depending on the vehicle's layout, drivetrain complexity (front-wheel drive, rear-wheel drive, or all-wheel drive), and clearance. From delivery of the remanufactured long block to final road testing and break-in checks, the process usually takes 3 to 5 business days.
